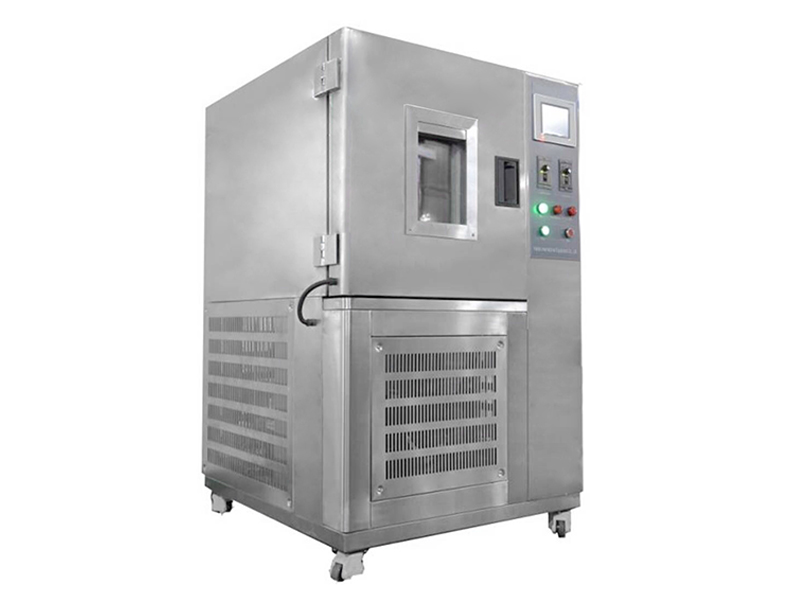

150L Automatic Controllable Simulated Environmental Ozone Aging Equipment

Name: 150L Automatic Controllable Simulated Environmental Ozone Aging Equipment
Brand: HAIDA
Price: 1 USD

Brand Name : HAIDA

Model Number : HD-E801

Certification : CE,ISO

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow, MoneyGram

Supply Ability : 30 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Internal Dimension (W*D*H) : 500*600*500mm

External Dimension (W*D*H) : 1000*1000*1750mm

Temperature range : ±1℃

Humidity range : 30%~90%RH

Ozone concentration : 50~1000 pphm, adjustable

Ozone concentration deviation : ±10%

Sample holder : SUS#304 stainless steel

Temperature controller : Programmable touch screen controller

Contact Now

150L Automatic Controllable Simulated Environmental Ozone Aging Equipment

Chamber Structure And Features

1, Internal material adopts high quality mirror stainless steel for ozone resistance.

2, Insulation material: high-density glass fiber

3, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.

4, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.

5, Chamber bottom has high quality caster for convenient move.

6, Observation window uses multilayer hollow tempered glass.

7, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.

8, Optional: Built-in 360 degree rotation sample holder, including 3 sets static tensile fixture and 3 sets dynamic tensile fixture.

Standard Features

Model	HD-E801
Internal dimension (WxDxH)	500600500mm
External dimension (WxDxH)	100010001750mm
Temperature range	RT+10~ 60℃ (suggest to use 40℃±2℃)
Temperature Fluctuation	±1℃
Humidity range	30%~90%RH
Humidity fluctuation	±3%RH
Ozone concentration	50~1000 pphm, adjustable
Ozone concentration deviation	±10%
Sample holder	SUS#304 stainless steel
Temperature controller	Programmable touch screen controller
Ozone concentration analysis	Concentration analysis meter
Ozone generator	High pressure silence discharge type
Protection system	Leakage, short circuit, over temperature, over heat
Test criteria	ASTM D1149, ISO 1431, JIS K6259...
