Accelerated Anti-yellowing Aging Test Chamber with Auto Controller

Name: Accelerated Antiyellowing Aging Test Chamber with Auto Controller
Brand: Haida
Price: 1 USD

Quality Accelerated Anti-yellowing Aging Test Chamber with Auto Controller wholesale

Brand Name : Haida

Model Number : HD-E704

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Product Name : anti-yellowing test chamber

Control Mode : Automatic Calculation Controller

Temperature Range : Ambient Temperature~200℃

Temperature display accuracy : 0.1℃

Time memory : 0-999 hours, Power Failure Memory Type, with Buzzer

UV light source : 300W UV lamp

Contact Now

Accelerated Anti-yellowing Aging Test Chamber with Auto Controller

HD-E704 Anti-yellowing Aging Test Chamber.pdf

Product Description:

Anti-yellowing Aging Testing Chamber is made in accordance with ASTM D1148,it can provide the simulative heat of the sun and ultraviolet radiation environment of space.It is used for observing the anti-yellowing degree of the sample after a period of time effected by the ultraviolet ray and the temperature. Grey stain can be used for reference standard, to judge it’s yellowing degree.Products will change their color when radiated by the sun or influenced by the environment of the container.

Standard Features

Item	Specification
Internal chamber size(WDH)	505060cm
External chamber size(WDH)	11474130cm
Temperature Range	Ambient Temperature~200℃
Control Mode	Automatic Calculation Controller
Temperature display accuracy	0.1℃
Control accuracy	±3℃
Distribution accuracy	±1℃ (ambient ~ 100℃)
Time memory	0-999 hours, Power Failure Memory Type, with Buzzer
Sample holder rotation speed	Diameter 45cm, 10±2 roll/min
UV light source	300W UV lamp
Standard Accessories	Sample shelf x 2pcs
Heating method	Hot air circulation
Security devices	Over-temperature power-off indicator light; Safety overload switch ammeter
Chamber material	Internal: Stainless Steel SUS304; External: Steel plate with baking varnish
Accessory	1 x English operation manual, 1 x Operation video CD

Applications

The machine can do two tests: anti-yellowing and aging.

1.Anti-yellowing: to stimulate the environment condition, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50’C for 9 hours, in theory as exposed to atmosphere for 6 months.

2.Aging: it can promote the increase of sulfur rubber deterioration so as to calculate the change rate of tensile and elongation before and after heat. Its generally thought that test for one day at 70C, in theory as exposed to the atmosphere for 6 months.

Accelerated Anti-yellowing Aging Test Chamber with Auto Controller

Product Tags:

ozone test chamber

xenon test chamber

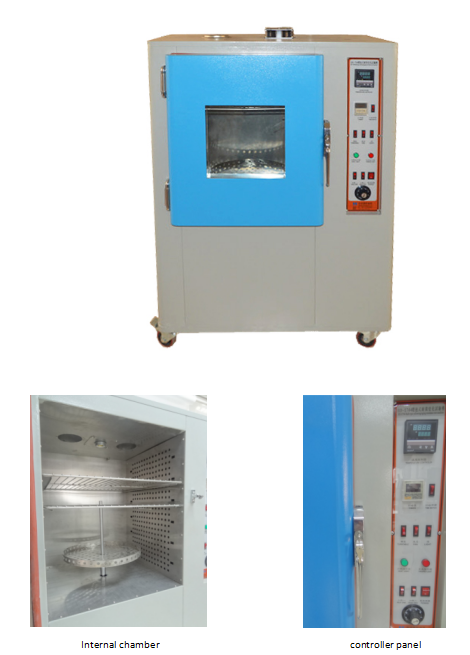

Accelerated Anti-yellowing Aging Test Chamber with Auto Controller Images
